# ALU Test

Download: alu_test.zip.

This projects tests the alu for signed subtraction by reducing the number of bits to three so an exhaustive search is manageable. It adds an extended calculation by increasing the number of bits by one to eliminate overflow. Then the exact output (ce) is compared to the actual output (c). A test flag is set whenever the two values are not equal. The overflow flag should match the test flag exactly.

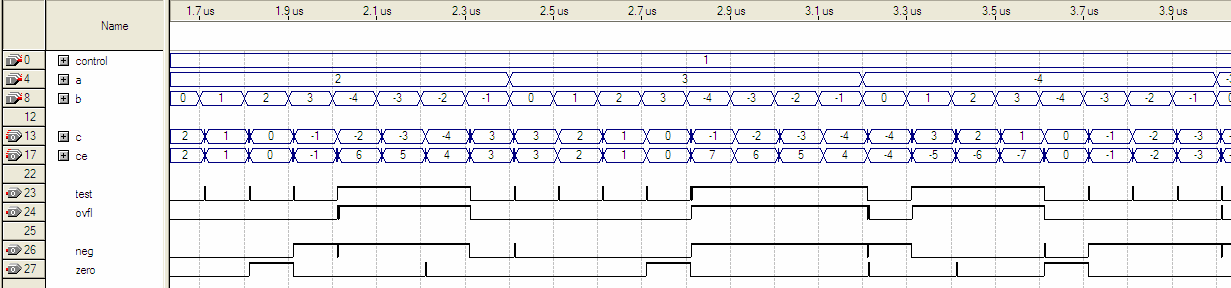

Click image above to expand.

alu.v

fit.summary
tan.summary

## Verilog Files

### `alu.v`

```/*
*   control:
*    000  add, signed
*    001  subtract, signed
*    010  add, unsigned
*    011  subtract, unsigned
* --------------------------------------------
*    100  AND
*    101  OR
*    110  XOR
*    111  NOR
*/
module alu(a,b,control,c,zero,neg,ovfl,ce,test);
parameter BITS = 3;
input [BITS-1:0] a, b;
input [2:0] control;
output [BITS-1:0] c;
output [BITS:0] ce;
output zero, neg, ovfl, test;

wire [BITS:0] ae,be;
assign ae = {a[BITS-1],a};
assign be = {b[BITS-1],b};
assign ce = (subtract?ae-be:ae+be);
assign test = ce != {sum[BITS-1],sum};

wire subtract;
assign subtract = control[0];

// add-subtract unit
wire [BITS-1:0] sum;
wire [BITS-1:0] bn;
wire cin, cout;
assign cin = subtract;
assign bn = (subtract? ~b: b);
assign {cout, sum} = a+bn+cin;

// logic unit
reg [BITS-1:0] out;
always
case (control[1:0])
2'b00: out = a&b;
2'b01: out = a|b;
2'b10: out = a^b;
2'b11: out = ~(a|b);
endcase

wire zero, sgn, unsgn;
assign zero = ~(|sum);
assign sgn  = (sum[BITS-1]? (~a[BITS-1])&(~bn[BITS-1]): a[BITS-1]&bn[BITS-1] );
assign unsgn = cout^subtract;
assign ovfl = (control[1]? unsgn: sgn);
assign neg = (control[1]? unsgn: sum[BITS-1]);

assign c = (control[2]? out: sum);

endmodule
```

## Quartus Compilation Summary

### `fit.summary`

```Fitter Status : Successful - Tue Sep 16 21:45:48 2008
Quartus II Version : 7.2 Build 175 11/20/2007 SP 1 SJ Web Edition
Revision Name : alu
Top-level Entity Name : alu
Family : Cyclone II
Device : EP2C35F672C6
Timing Models : Final
Total logic elements : 30 / 33,216 ( < 1 % )
Total combinational functions : 30 / 33,216 ( < 1 % )
Dedicated logic registers : 0 / 33,216 ( 0 % )
Total registers : 0
Total pins : 20 / 475 ( 4 % )
Total virtual pins : 0
Total memory bits : 0 / 483,840 ( 0 % )
Embedded Multiplier 9-bit elements : 0 / 70 ( 0 % )
Total PLLs : 0 / 4 ( 0 % )
```

### `tan.summary`

```--------------------------------------------------------------------------------------
Timing Analyzer Summary
--------------------------------------------------------------------------------------

Type           : Worst-case tpd
Slack          : N/A
Required Time  : None
Actual Time    : 12.850 ns
From           : control[0]
To             : ovfl
From Clock     : --
To Clock       : --
Failed Paths   : 0

Type           : Total number of failed paths
Slack          :
Required Time  :
Actual Time    :
From           :
To             :
From Clock     :
To Clock       :
Failed Paths   : 0

--------------------------------------------------------------------------------------

```

Maintained by John Loomis, last updated Tue Sep 16 22:03:48 2008
