Combined Application and Applet

In main:

  1. Create a JFrame in which applet will execute.
  2. Instantiate the applet.
  3. Call the applet's init and start methods
  4. Attach the applet to the center of the JFrame.
  5. Set the frame's size.
  6. Make the frame visible.



DrawShapes.java

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;

public class DrawShapes extends JApplet {
   private JButton choices[];
   private String names[] = { "Line", "Rectangle", "Oval" };
   private JPanel buttonPanel;
   private DrawPanel drawingArea;
   private int width = 300, height = 200;

   public void init()
   {
      drawingArea = new DrawPanel( width, height );

      choices = new JButton[ names.length ];
      buttonPanel = new JPanel();
      buttonPanel.setLayout(
         new GridLayout( 1, choices.length ) );
      ButtonHandler handler = new ButtonHandler();

      for ( int i = 0; i < choices.length; i++ ) {
         choices[ i ] = new JButton( names[ i ] );
         buttonPanel.add( choices[ i ] );
         choices[ i ].addActionListener( handler );
      }

      Container c = getContentPane();
      c.add( buttonPanel, BorderLayout.NORTH );
      c.add( drawingArea, BorderLayout.CENTER );
   }

   public void setWidth( int w )
      { width = ( w >= 0 ? w : 300 ); }

   public void setHeight( int h )
      { height = ( h >= 0 ? h : 200 ); }

   public static void main( String args[] )
   {
      int width, height;

      if ( args.length != 2 ) {  // no command-line arguments
         width = 300;
         height = 200;
      }
      else {
         width = Integer.parseInt( args[ 0 ] );
         height = Integer.parseInt( args[ 1 ] );
      }

      // create window in which applet will execute
      JFrame applicationWindow =

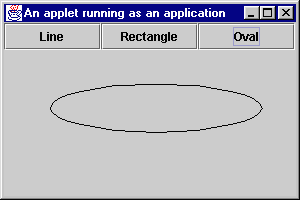

         new JFrame( "An applet running as an application" );

      applicationWindow.addWindowListener(
         new WindowAdapter() {
            public void windowClosing( WindowEvent e )
            {
               System.exit( 0 );
            }
         }
      );

      // create one applet instance
      DrawShapes appletObject = new DrawShapes();
      appletObject.setWidth( width );
      appletObject.setHeight( height );

      // call applet's init and start methods
      appletObject.init();
      appletObject.start();

      // attach applet to center of window
      applicationWindow.getContentPane().add( appletObject );

      // set the window's size
      applicationWindow.setSize( width, height );

      // showing the window causes all GUI components
      // attached to the window to be painted
      applicationWindow.show();
   }

   private class ButtonHandler implements ActionListener {
      public void actionPerformed( ActionEvent e )
      {
         for ( int i = 0; i < choices.length; i++ )
            if ( e.getSource() == choices[ i ] ) {
               drawingArea.setCurrentChoice( i );
               break;
            }
      }
   }
}

// subclass of JPanel to allow drawing in a separate area
class DrawPanel extends JPanel {
   private int currentChoice = -1;  // don't draw first time
   private int width = 100, height = 100;

   public DrawPanel( int w, int h )
   {
      width = ( w >= 0 ? w : 100 );
      height = ( h >= 0 ? h : 100 );
   }

   public void paintComponent( Graphics g )
   {
      super.paintComponent( g );

      switch( currentChoice ) {
         case 0:
            g.drawLine( randomX(), randomY(),
                        randomX(), randomY() );
            break;
         case 1:
            g.drawRect( randomX(), randomY(),
                        randomX(), randomY() );
            break;
         case 2:
            g.drawOval( randomX(), randomY(),
                        randomX(), randomY() );
            break;
      }
   }

   public void setCurrentChoice( int c )
   {
      currentChoice = c;
      repaint();
   }

   private int randomX()
      { return (int) ( Math.random() * width ); }

   private int randomY()
      { return (int) ( Math.random() * height ); }
}


Maintained by John Loomis, last updated 6 July 2000
