process a bitmap into a MIF file
Contents
read the image and show it
name = 'anouv1';
img = imread(strcat(name,'.gif'));
g = im2double(img);
g = g/max(max(g));
rgb = cat(3,g,g,g);
imshow(rgb);

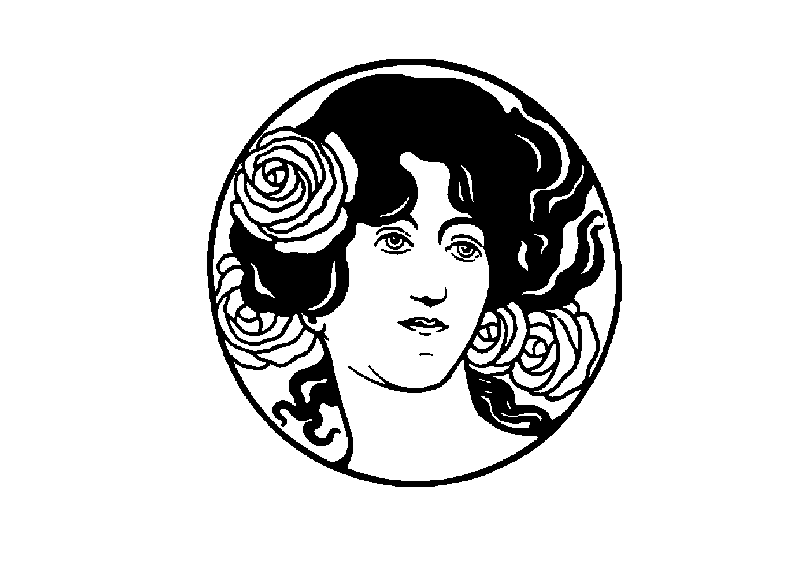

insert into 640 x 480 region
out = ones(480,640);
out(10+(1:460),90+(1:460)) = img;
imshow(out);
pack pixels
x = out';
x = uint8(x(:));
n = length(x);
y = reshape(x,8,n/8)';
z = y(:,8);
for i=1:7
z = bitor(z,bitshift(y(:,i),8-i));
end
count runs
m = 0;
n = 1;
v = z(1);
for i=2:length(z)
if (z(i)~=v)
m = m + 1;
value(m) = v;
runlen(m) = n;
n = 1;
v = z(i);
else
n = n + 1;
end
end
m = m + 1;
value(m) = v;
runlen(m) = n;
information
fprintf('total runs %d\n',sum(runlen));
fprintf('number of runs %d\n',length(runlen));
nz = length(find(value==0));
nf = length(find(value==255));
fprintf('zeros %d all ones %d\n',nz,nf);
total runs 38400
number of runs 9698
zeros 1635 all ones 2003
create mif file
dfv = 255;
fid = fopen(strcat(name,'.mif'),'w');
str = 'WIDTH=8;\nDEPTH=38400;\n\nADDRESS_RADIX=HEX;\nDATA_RADIX=HEX;\n\n';
fprintf(fid,str);
str = 'CONTENT BEGIN\n [0000..%04X] : %X;\n';
fprintf(fid,str,sum(runlen)-1,dfv);
n = 0;
for k=1:length(runlen)
if (runlen(k)==1)
str = sprintf(' %04X : %X;\n', n, value(k));
else
str = sprintf(' [%04X..%04X] : %X;\n', n, n+runlen(k)-1, value(k));
end
if (value(k) ~= dfv)
fprintf(fid,str);
end
n = n + runlen(k);
end
fprintf(fid,'END;\n');
fclose(fid);
