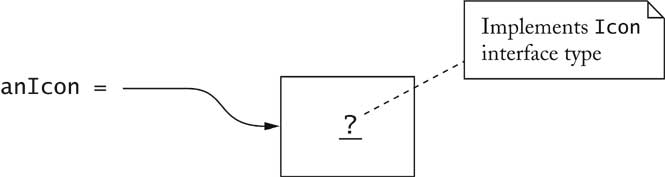

Recall that the JOptionPane.showMessageDialog
calls
for an Icon
argument.
showMessageDialog(..., new MarsIcon(50))

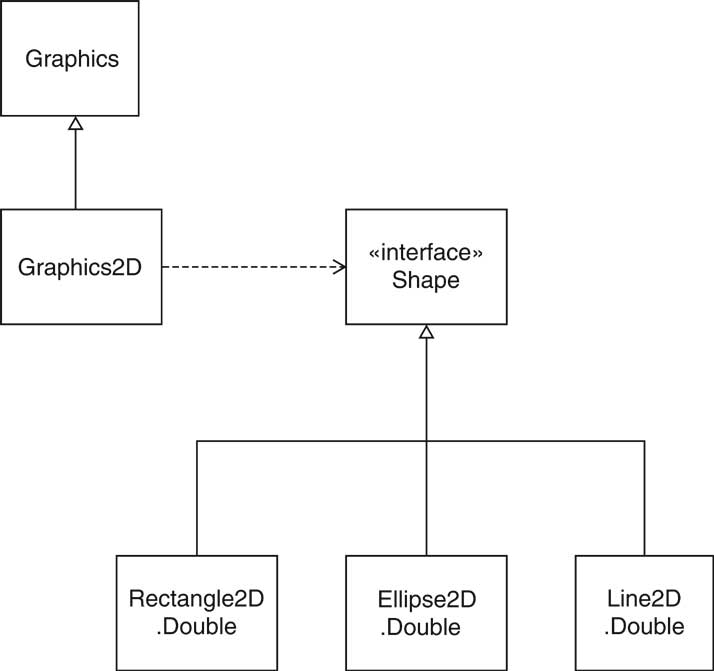

public void paintIcon(Component c, Graphics g, int x, int y)
{
Graphics2D g2 = (Graphics2D)g;
. . .
}
Shape s = . . .;
g2.draw(s);
See: Graphics2D tutorial

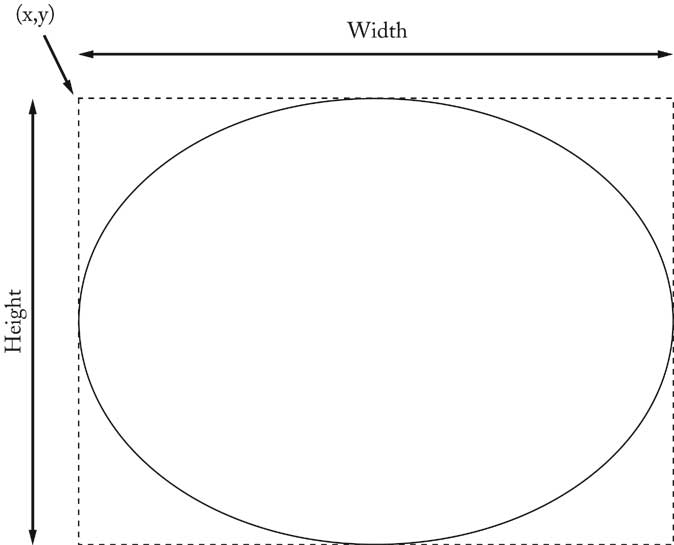

Point2D.Double start = new Point2D.Double(x1, y1);
Point2D.Double end = new Point2D.Double(x2, y2);
Shape segment = new Line2D.Double(start, end);
g2.draw(segment);
g2.fill(shape);
CarIcon.java
import java.awt.*; import java.awt.geom.*; import javax.swing.*; /** An icon that has the shape of a car. */ public class CarIcon implements Icon { /** Constructs a car of a given width. @param width the width of the car */ public CarIcon(int aWidth) { width = aWidth; } public int getIconWidth() { return width; } public int getIconHeight() { return width / 2; } public void paintIcon(Component c, Graphics g, int x, int y) { Graphics2D g2 = (Graphics2D) g; Rectangle2D.Double body = new Rectangle2D.Double(x, y + width / 6, width - 1, width / 6); Ellipse2D.Double frontTire = new Ellipse2D.Double(x + width / 6, y + width / 3, width / 6, width / 6); Ellipse2D.Double rearTire = new Ellipse2D.Double(x + width * 2 / 3, y + width / 3, width / 6, width / 6); // the bottom of the front windshield Point2D.Double r1 = new Point2D.Double(x + width / 6, y + width / 6); // the front of the roof Point2D.Double r2 = new Point2D.Double(x + width / 3, y); // the rear of the roof Point2D.Double r3 = new Point2D.Double(x + width * 2 / 3, y); // the bottom of the rear windshield Point2D.Double r4 = new Point2D.Double(x + width * 5 / 6, y + width / 6); Line2D.Double frontWindshield = new Line2D.Double(r1, r2); Line2D.Double roofTop = new Line2D.Double(r2, r3); Line2D.Double rearWindshield = new Line2D.Double(r3, r4); g2.fill(frontTire); g2.fill(rearTire); g2.setColor(Color.red); g2.fill(body); g2.draw(frontWindshield); g2.draw(roofTop); g2.draw(rearWindshield); } private int width; public static void main(String[] args) { JOptionPane.showMessageDialog( null, "Hello, Car!", "Message", JOptionPane.INFORMATION_MESSAGE, new CarIcon(100)); System.exit(0); } }
IconTest.java
import javax.swing.*; public class IconTest { public static void main(String[] args) { JOptionPane.showMessageDialog( null, "Hello, Car!", "Message", JOptionPane.INFORMATION_MESSAGE, new CarIcon(100)); System.exit(0); } }
