>> im1 = imread('lytle03.jpg');
>> im2 = imread('lytle05.jpg');
>> g1 = rgb2gray(im1);
>> g2 = rgb2gray(im2);
>> gray1 = double(g1)/255;
>> gray2 = double(g2)/255;
>> gray1 = gray1(1:480,1:640);
>> gray2 = gray2(1:480,1:640);
Find the difference between the two grayscale images, and calculate the standard deviation of the difference.
>> diff = gray2 - gray1;
>> cendiff = 0.5*(diff+1);
>> std2(diff)
ans = 0.0439
>> [counts,x] = imhist(cendiff);
>> stem(x(100:160),counts(100:160),'.-')
>> xlabel('pixel');
>> ylabel('counts');
>> [f,map] =capture;
>> imwrite(f,map,'hist1.bmp');
Assume that image Y is point-by-point linearly related to image X
First we define some notation for the mean of an image:
We can use the mean to eliminate k0
The method of least-squares is used to find k1. The total least-squared deviation is:
which can be solved for k1 using:
The solution is given by
or as follows, with a change in notation:
Now we can find k0 from
>> gm1 = mean2(gray1)
gm1 = 0.5563
>> gm2 = mean2(gray2)
gm2 = 0.5579
>> gc1 = gray1 - gm1;
>> gc2 = gray2 - gm2;
>> sxy = mean2(gc1.*gc2);
>> sxx = mean2(gc1.*gc1);
>> k1 = sxy/sxx
k1 = 0.9694
>> k0 = gm2 - k1*gm1
k0 = 0.0186
>> diff2 = gray2 - k0 - k1*gray1;
>> cd = 0.5*(diff2+1);
>> imwrite(cd,'cd.jpg');
>> std2(diff2)
ans = 0.0433

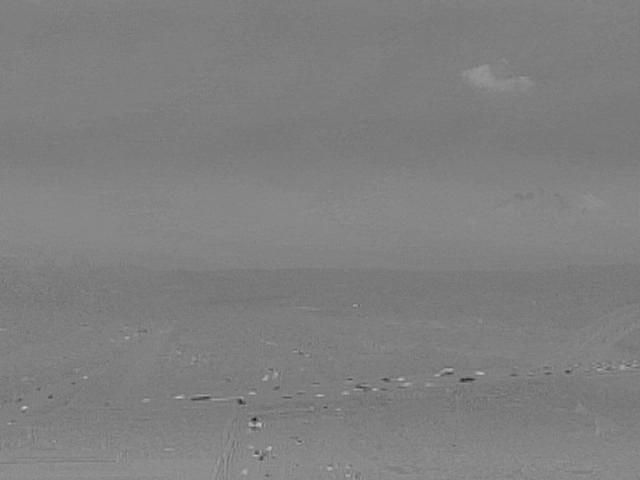

Final difference image
Final difference histogram
