Sample Waveforms for myfifo.v

Sample behavioral waveforms for design file myfifo.v

The following waveforms show the behavior of scfifo megafunction for the chosen set of parameters in design myfifo.v. The design myfifo.v has a depth of 128 words of 32 bits each. The output of the fifo is unregistered. The fifo is in show-ahead synchronous mode. The data becomes available before 'rdreq' is asserted; 'rdreq' acts as a read acknowledge.

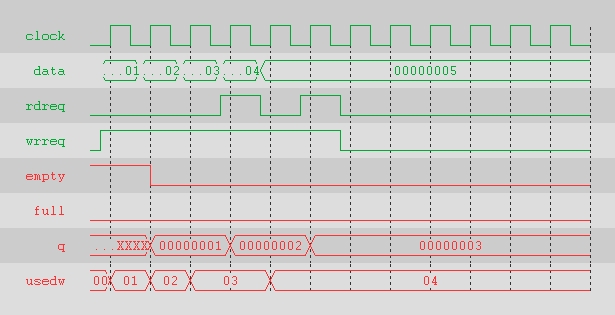

Fig. 1 : Wave showing read and write operation.

The above waveform shows the behavior of the design under normal read and write conditions .
