Double Gauss Lens

100-mm f/1.8 Double Gauss lens with 23^o half field of view.
                RDY             THI     RMD       GLA           CCY   THC   GLC
  OBJ:        INFINITY        INFINITY                          100   100
    1:        33.01363        5.680885       BASF2_SCHOTT       100   100
    2:        83.71739        0.272881                          100   100
    3:        28.07449        6.648372       LAKN13_SCHOTT      100   100
    4:       354.44506        1.984589       SF2_SCHOTT         100   100
    5:        16.33813        9.550833                          100   100
  STO:        INFINITY        9.972558                          100   100
    7:       -15.49964        2.009396       SF8_SCHOTT         100   100
    8:       139.41240        7.715089       LAK8_SCHOTT        100   100
    9:       -23.71087        0.272881                          100   100
   10:      -212.44278        5.854537       LAKN12_SCHOTT      100   100
   11:       -36.49659        0.272881                          100   100
   12:        76.07425        4.490132       LAK8_SCHOTT        100   100
   13:     -1150.54298       35.103495                          100   PIM
  IMG:        INFINITY       -0.104303                          100     0

SPECIFICATION DATA
   EPD       27.77778
   DIM             MM
   WL          620.00    550.00    480.00
   REF              2
   WTW              1         1         1
   XAN        0.00000       0.00000       0.00000
   YAN        0.00000      15.00000      23.00000
   VUY        0.00000       0.10000       0.20000
   VLY        0.00000       0.10000       0.20000

REFRACTIVE INDICES
    GLASS CODE                    620.00       550.00       480.00
   BASF2_SCHOTT                 1.661662     1.668390     1.678686
   LAKN13_SCHOTT                1.691494     1.696276     1.703331
   SF2_SCHOTT                   1.644806     1.651742     1.662381
   SF8_SCHOTT                   1.685614     1.693606     1.705939
   LAK8_SCHOTT                  1.710947     1.715831     1.722973
   LAKN12_SCHOTT                1.676001     1.680522     1.687170

SOLVES
   PIM

No pickups defined in system


INFINITE CONJUGATES
   EFL        50.0000
   BFL        35.1035
   FFL         6.1526
   FNO         1.8000
   IMG DIS    34.9992
   OAL        54.7250
   PARAXIAL IMAGE
    HT        21.2237
   ANG        23.0000
   ENTRANCE PUPIL
    DIA       27.7778
    THI       30.0791
   EXIT PUPIL
    DIA       58.0482
    THI      -69.3833

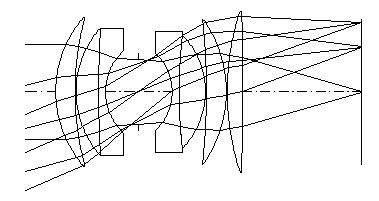

Double Gauss Lens

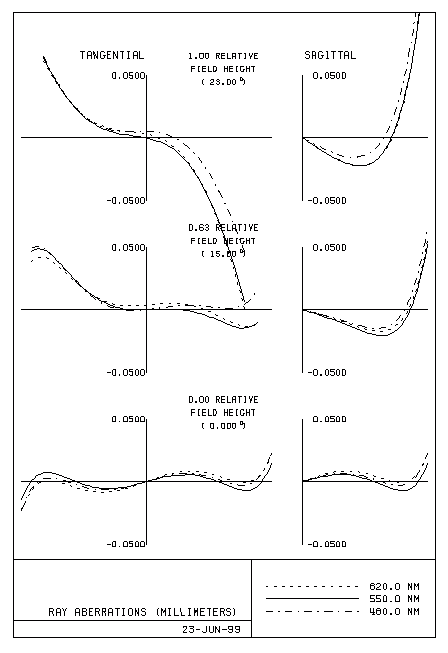

Ray Aberration Plot

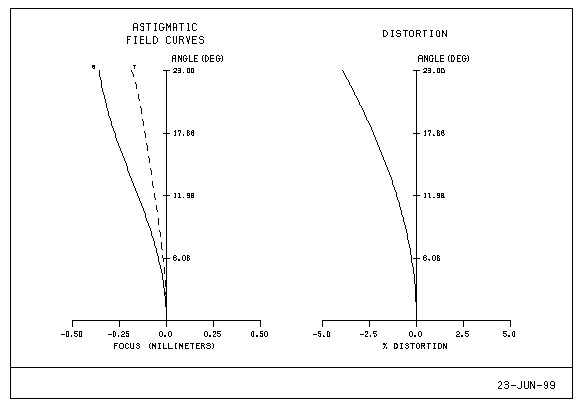

Field Curvature/Distortion

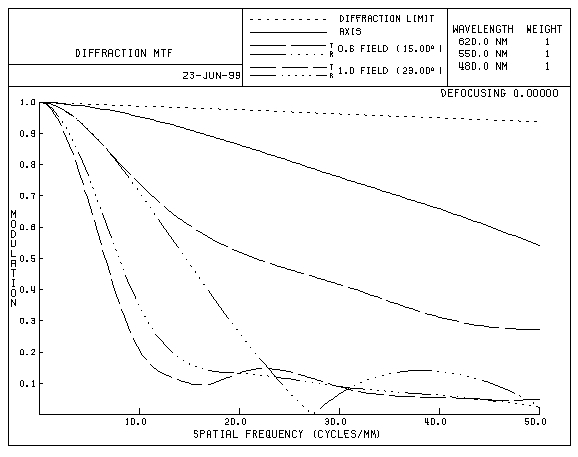

Diffraction MTF

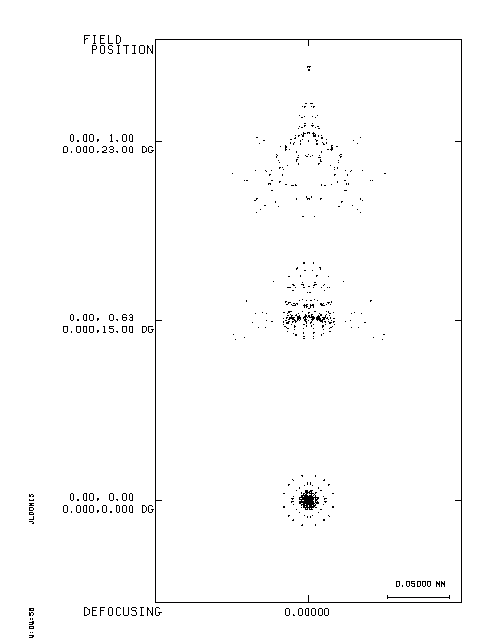

Spot Diagram
