*LENS DATA
Kidger triplet
SRF RADIUS THICKNESS APERTURE RADIUS GLASS SPE NOTE
OBJ -- 1.0000e+20 4.0403e+19 AIR
1 18.609000 2.500000 7.000000 SK16 C
2 460.970000 5.157000 7.000000 AIR
3 -29.934000 1.000000 6.000000 F6 C
4 18.605000 1.207000 6.000000 AIR
AST -- 4.007000 4.919629 AS AIR
6 67.594000 2.500000 7.000000 SK16 C
7 -22.160000 41.605240 7.000000 AIR
IMS -- -- 20.133371 S
*SPECIAL DATA TYPES
NO SPECIAL DATA TYPES
*SOLVES
NO SOLVE DATA
*PICKUPS
NO PICKUP DATA
*APERTURES
SRF TYPE APERTURE RADIUS
0 SPC 4.0403e+19
1 SPC 7.000000
2 SPC 7.000000
3 SPC 6.000000
4 SPC 6.000000
5 CMP 4.919629
6 SPC 7.000000
7 SPC 7.000000
8 CMP 20.133371
*WAVELENGTHS
CURRENT WV1/WW1 WV2/WW2 WV3/WW3
1 0.587560 0.486130 0.656270
1.000000 1.000000 1.000000
*REFRACTIVE INDICES
SRF GLASS/CATALOG RN1 RN2 RN3 VNBR TCE
0 AIR 1.000000 1.000000 1.000000 -- --
1 SK16 1.620410 1.627557 1.617272 60.322758 63.000000
SCHOTT OLD
2 AIR 1.000000 1.000000 1.000000 -- 236.000000
3 F6 1.636359 1.649088 1.631082 35.340591 85.000000
SCHOTT OLD
4 AIR 1.000000 1.000000 1.000000 -- 236.000000
5 AIR 1.000000 1.000000 1.000000 -- 236.000000
6 SK16 1.620410 1.627557 1.617272 60.322758 63.000000
SCHOTT OLD
7 AIR 1.000000 1.000000 1.000000 -- 236.000000
8 IMAGE SURFACE
*INTERNAL TRANSMITTANCE (5 MM)
SRF GLASS/CATALOG ITN1 ITN2 ITN3
0 AIR 1.0 1.0 1.0
1 SK16 0.999 0.998 0.999
SCHOTT OLD
2 AIR 1.0 1.0 1.0
3 F6 0.999 0.998 0.999
SCHOTT OLD
4 AIR 1.0 1.0 1.0
5 AIR 1.0 1.0 1.0
6 SK16 0.999 0.998 0.999
SCHOTT OLD
7 AIR 1.0 1.0 1.0
8 IMAGE SURFACE

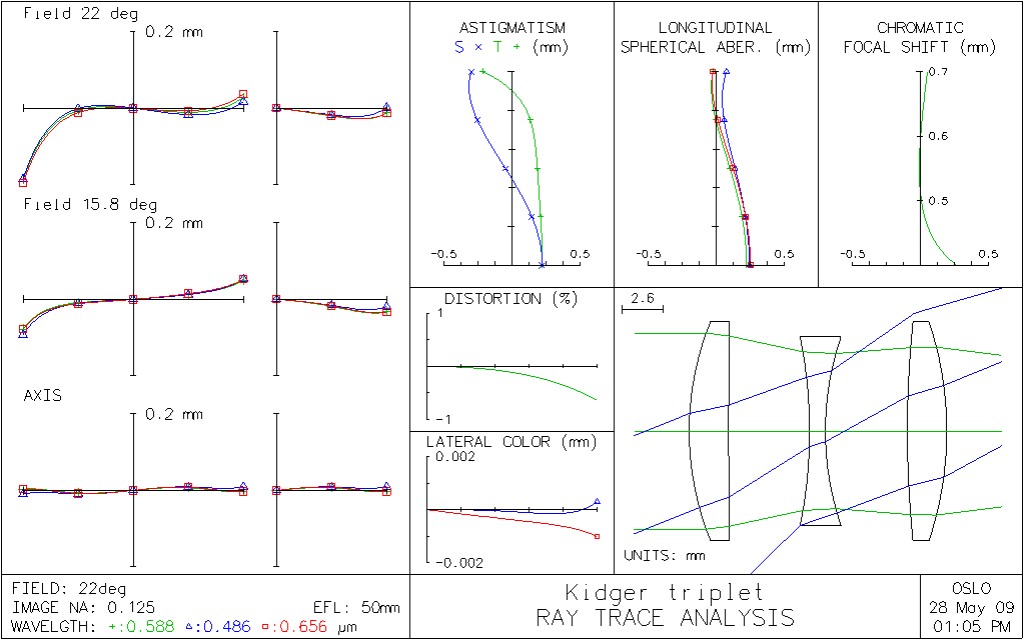

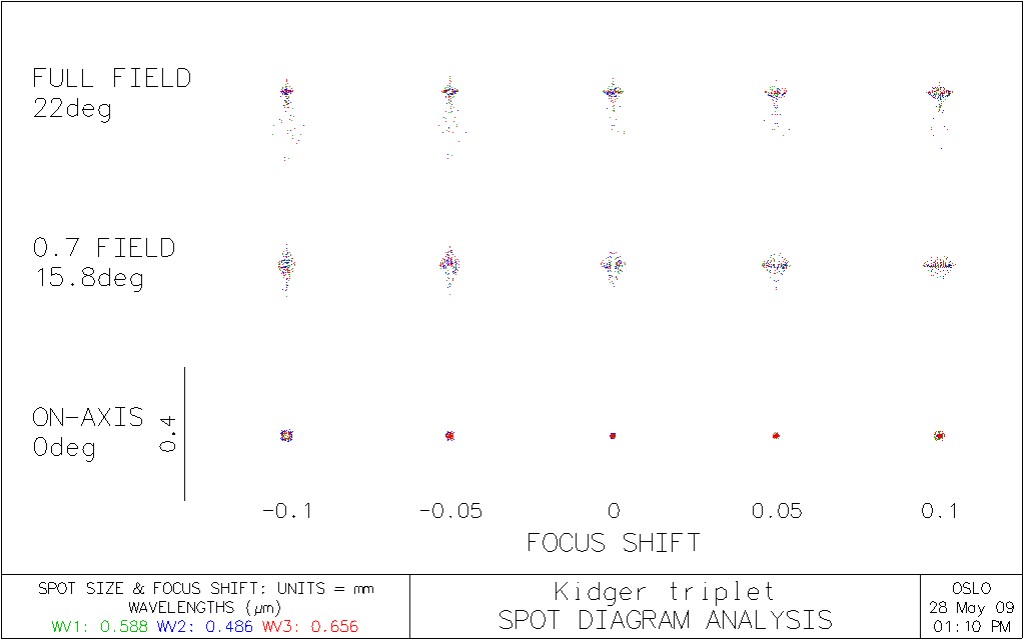

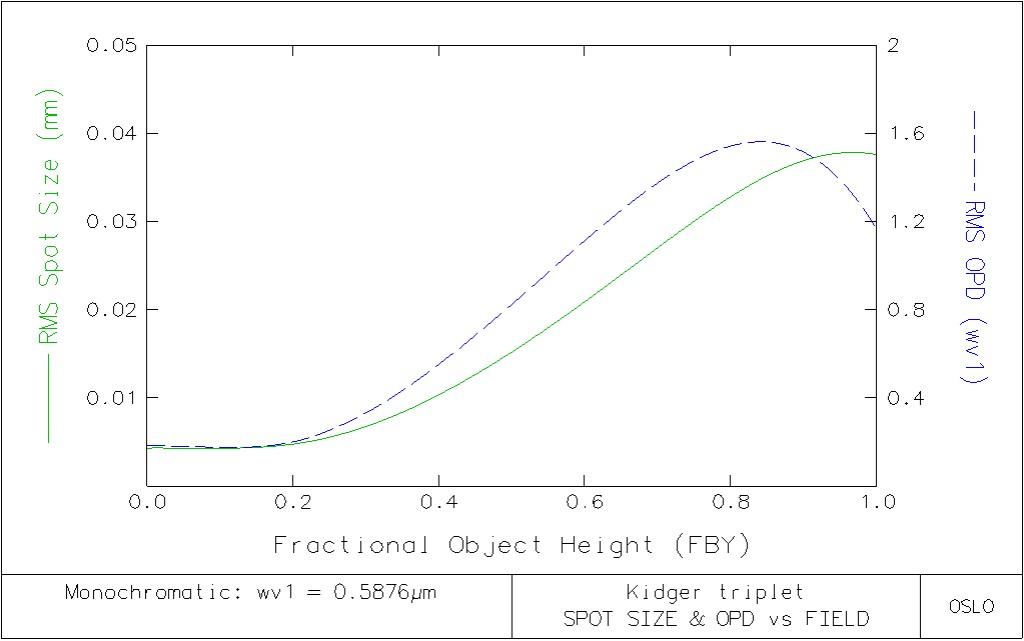

APERTURE Entrance beam radius: * 6.250000 Image axial ray slope: -0.125015 Object num. aperture: 6.2500e-20 F-number: 3.999519 Image num. aperture: 0.125015 Working F-number: 3.999519 FIELD Field angle: * 22.000000 Object height: -4.0403e+19 Gaussian image height: 20.198883 Chief ray ims height: 20.105174 CONJUGATES Object distance: 1.0000e+20 Srf 1 to prin. pt. 1: 10.142043 Gaussian image dist.: 41.830791 Srf 7 to prin. pt. 2: -8.163199 Overall lens length: 16.371000 Total track length: 1.0000e+20 Paraxial magnification: -4.9994e-19 Srf 7 to image srf: 41.605240 OTHER DATA Entrance pupil radius: 6.250000 Srf 1 to entrance pup.: 11.557909 Exit pupil radius: 6.077870 Srf 7 to exit pupil: -6.786327 Lagrange invariant: -2.525164 Petzval radius: -113.737979 Effective focal length: 49.993991 SPOT DIAGRAMS Aperture divisions: 17.030000 Gaussian apod. spec.: Off X 1/e^2 entr. irrad.: 1.000000 Y 1/e^2 entr. irrad.: 1.000000
SRF PY PU PI PYC PUC PIC 0 -- 6.2500e-20 6.2500e-20 -4.0403e+19 0.404026 0.404026 1 6.250000 -0.128591 0.335859 -4.669698 0.345413 0.153089 2 5.928522 -0.200391 -0.115730 -3.806166 0.554588 0.337156 3 4.895105 -0.058867 -0.363921 -0.946157 0.326624 0.586196 4 4.836238 0.069090 0.201076 -0.619533 0.513283 0.293324 5 4.919629 0.069090 0.069090 -7.7716e-16 0.513283 0.513283 6 5.196471 0.013203 0.145967 2.056727 0.305112 0.543711 7 5.229477 -0.125015 -0.222785 2.819505 0.415469 0.177878 8 0.028197 -0.125015 -0.125015 20.105174 0.415469 0.415469
*SEIDEL WAVEFRONT ABERRATION COEFFICIENTS - WAVELENGTH 1 COEFFICIENTS IN WAVELENGTHS SRF W040 W131 W222 W220 W311 1 11.902487 21.701191 9.891666 60.766857 55.396539 2 5.368521 -62.560339 182.256726 88.874912 -517.837682 3 -22.676746 146.108747 -235.348650 -152.921619 492.645339 4 -11.702976 -68.288015 -99.616817 -106.518568 -310.773147 5 -- -- -- -- -- 6 1.435463 21.387733 79.666841 55.201255 411.236623 7 19.307181 -61.661621 49.232402 71.492259 -114.162928 SUM 3.633929 -3.312304 -13.917832 16.895095 16.504744
