vignetting diagram

Contents

load lens

triplet129

efl 99.9744
bfd 84.1487
fno 6.3

height of entering axial ray 7.93448
k -0.856214

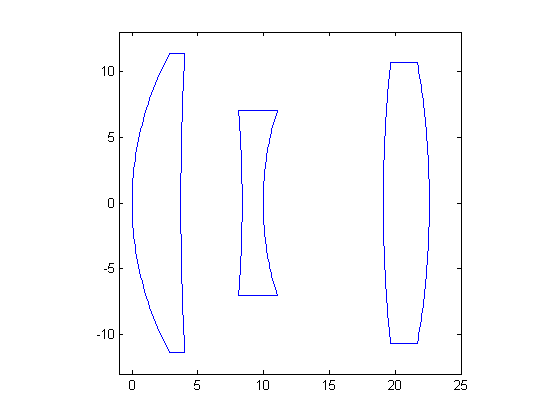

system specification

   n          rd        th   index      sa
   0      0.0000    0.0000  1.0000    0.00
   1     24.1100    3.7000  1.6130   11.40
   2    215.0900    4.6600  1.0000   11.40
   3    -94.8100    1.6000  1.5960    7.00
   4     23.7600    2.3700  1.0000    7.00
   5      0.0000    6.7600  1.0000    6.60
   6    104.5000    3.5000  1.6130   10.70
   7    -63.8900   84.1487  1.0000   10.70

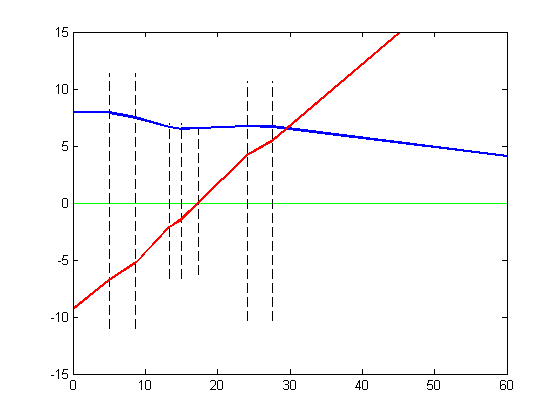

paraxial raytrace

   n        pya        pua        pyc        puc
   0     7.9345     0.0000    -6.7936     0.5095
   1     7.9345    -0.1251    -6.7936     0.4230
   2     7.4717    -0.1804    -5.2286     0.6674
   3     6.6309    -0.0869    -2.1188     0.4098
   4     6.4918     0.0241    -1.4631     0.6173
   5     6.5488     0.0241     0.0000     0.6173
   6     6.7116    -0.0095     4.1732     0.3675
   7     6.6785    -0.0794     5.4596     0.5405
   8     0.0000    -0.0794    50.9395     0.5405

gaussian image height (GIH) 50.9395
Lagrange invariant 4.04282

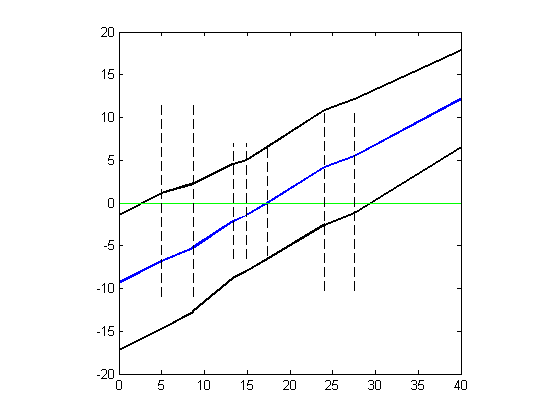

graphical display

close all
z = [0 5 5+cumsum(th)]';
ya = [pya(1,1); pya(:,1)];
yc = [pyc(1,1)-5*pyc(1,2); pyc(:,1)];
yu = yc+ya;
yl = yc-ya;
% plot central and rim rays
plot(z,yc,'b','LineWidth',2);
hold on
plot(z,yu,'k','LineWidth',2);
plot(z,yl,'k','LineWidth',2);
%plot([z; flipud(z)],[yu; -flipud(yl)],'k','LineWidth',2);
axis equal
axis([0 40 -20 20]);

hold on
% optical axis
plot([0 120],[0 0],'g');
% plot surface positions
for k=1:n
    zt = z(k+1);
    plot([zt zt],[-sa(k) sa(k)],'k--');
end
hold off

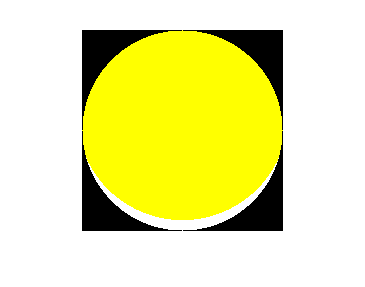

full-field vignetting diagram

% full field
ap = sa(2:n)';
[percent, rgb] = vignette(sa(2:n)',pya(2:n,1),pyc(2:n,1));
imshow(rgb);
fprintf('full-field vignetting %g percent\n',percent)

full-field vignetting 30.064 percent

half-field vignetting

frac = 0.5;
[percent, rgb] = vignette(ap,pya(2:n,1),frac*pyc(2:n,1));
imshow(rgb);
fprintf('%g-field vignetting %g percent\n',frac,percent)

0.5-field vignetting 5.3672 percent

Published with MATLAB® 7.10
